Now Available · Native Rhinoceros 3D Plugin

Automated notch marks & seam allowances for Rhinoceros 3D.

RhinoNotchesPro automates the placement of notch marks, target marks, drill holes, and seam allowances on your flat patterns — a smarter pattern-making workflow directly inside Rhinoceros 3D.

Get RhinoNotchesPro → See Features
6Notch Types
1-ClickWorkflow
7 & 8Rhino Versions
€19From / Month
The Case

Notch marks shouldn't take an afternoon.

The Problem

By hand, every time.

  • Hours spent measuring and drawing each mark
  • Inconsistent angles cause alignment errors
  • Seam allowances recalculated on every revision
  • Sharp corners easy to miss, hard to fix
The Solution

One command, every notch.

  • All marks placed in seconds — correctly oriented
  • Six notch types for every production standard
  • Variable seam allowances per edge
  • Smart corner detection skips conflicts automatically

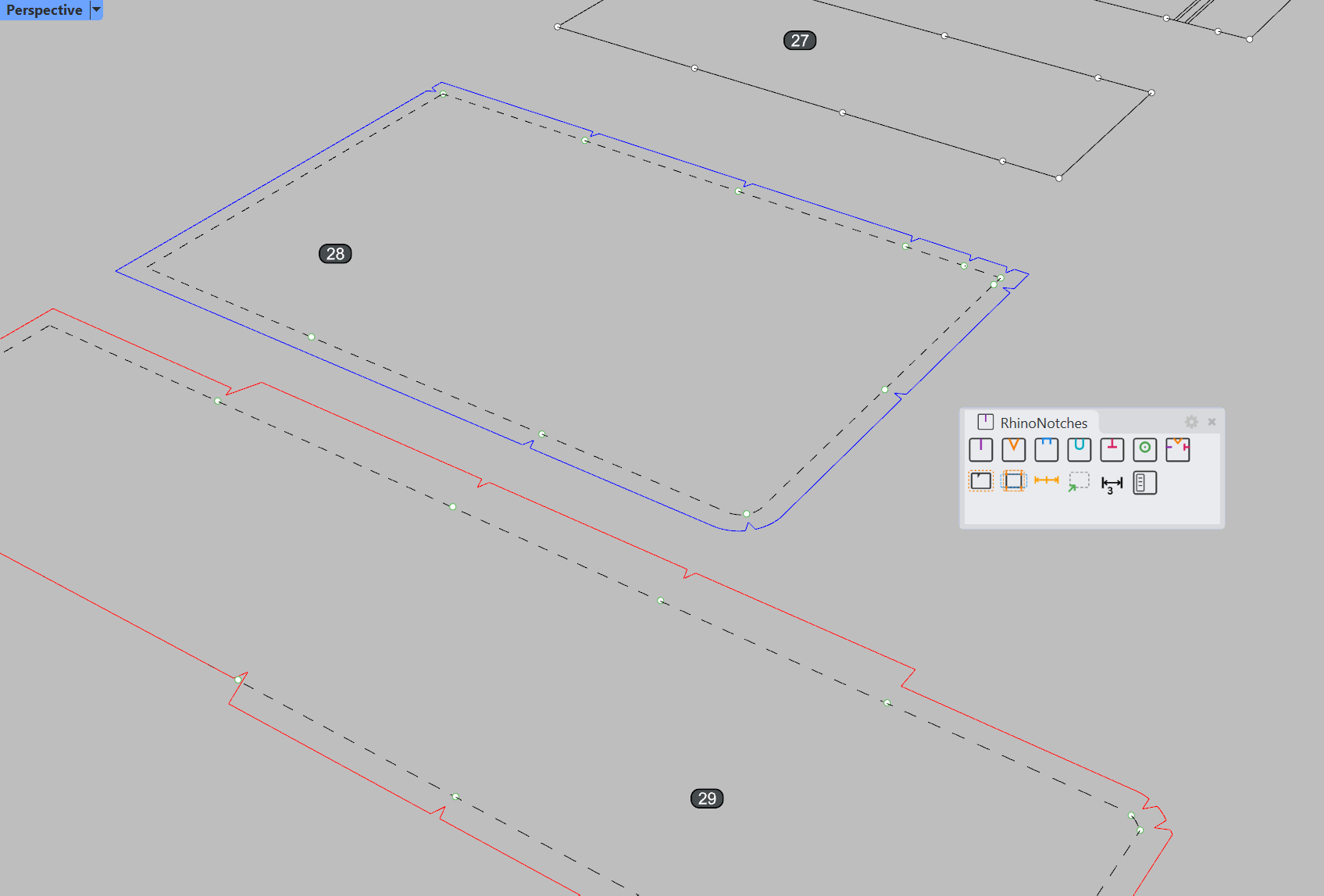

RhinoNotchesPro toolbar and seam allowance workflow in a Rhino viewport
Showcase

See it in action.

Toolbar, dockable panel, and seam-allowance tools — everything inside the Rhino viewport.

Capabilities

Features.

Six Notch Types

I, V, T, U, External, and Drill Hole — correct geometry for hand, CNC, and laser cutting.

Dockable Panel

Every setting at hand without leaving the viewport. Settings persist between sessions.

Seam Allowance Tools

Add seam allowances directly on flat patterns, with adjustable widths between notch points.

Smart Corner Detection

Skips sharp angles where notches would overlap. Threshold is adjustable.

Variable Seam Widths

Hems, zippers, and structural edges — each with its own offset on the same pattern.

Restore Original Curve

Roll any processed curve back to its original boundary in one command.

Workflow

How it works.

  1. 1

    Select curves

    Pick one or more closed boundary curves.

  2. 2

    Choose notch type

    Toolbar, panel, or command line.

  3. 3

    Set parameters

    Depth, angle, spacing, seam allowance.

  4. 4

    Run command

    One click places every notch.

  5. 5

    Review

    Corner warnings surface in the command line.

  6. 6

    Export

    Standard Rhino geometry → DXF, DWG, PDF.

Who it's for

For people who flatten 3D surfaces and cut patterns.

Built from 13+ years inside marine soft-goods production — and useful anywhere flat patterns become physical things.

  • Marine canvas & upholstery
  • Boat canopies & covers
  • Furniture & automotive interiors
  • Garment & textile patterns
  • CNC & laser cutting
Requirements

Technical details.

Platform
Windows. macOS support in testing — apply as a beta tester.
Rhino Version
Rhino 7 & Rhino 8
Runtime
.NET Framework 4.8
Plugin type
Native Rhino plugin — runs independently, no Grasshopper required
Install
Drag & drop the .rhp file onto Rhino
Commands
Notches, Notches_3mm, Notches_5mm, VNotches, INotches, TNotches, UNotches, ExternalNotches, DrillHoles, SeamAllowanceNotches, AdjustThreshold, RhinoNotches_Panel
Export
DXF, DWG, PDF, AI — any Rhino-supported format
License
Single-machine license — transferable to a new computer, cooldown between transfers
Pricing

From €19/month.

Flexible monthly, annual, and perpetual license options. 14-day money-back guarantee on every purchase.

RhinoNotchesPro

From €19/month

All plans include full features. Choose the cadence that fits your team — monthly, annual, or one-time perpetual licence.

View pricing plans →

14-day money-back guarantee on every purchase.

Get in Touch

Ready to automate your notching?

From €19/month with a 14-day money-back guarantee. Start producing cleaner patterns — or send a question first.

Get RhinoNotchesPro → LinkedIn →

Based in Kuopio, Finland · Business ID 3600460-1
